LCP80 PLUS Flat Open Windows

Application Area:High performance system door and window solution for cold region,hot area andhigh acoustic environment.

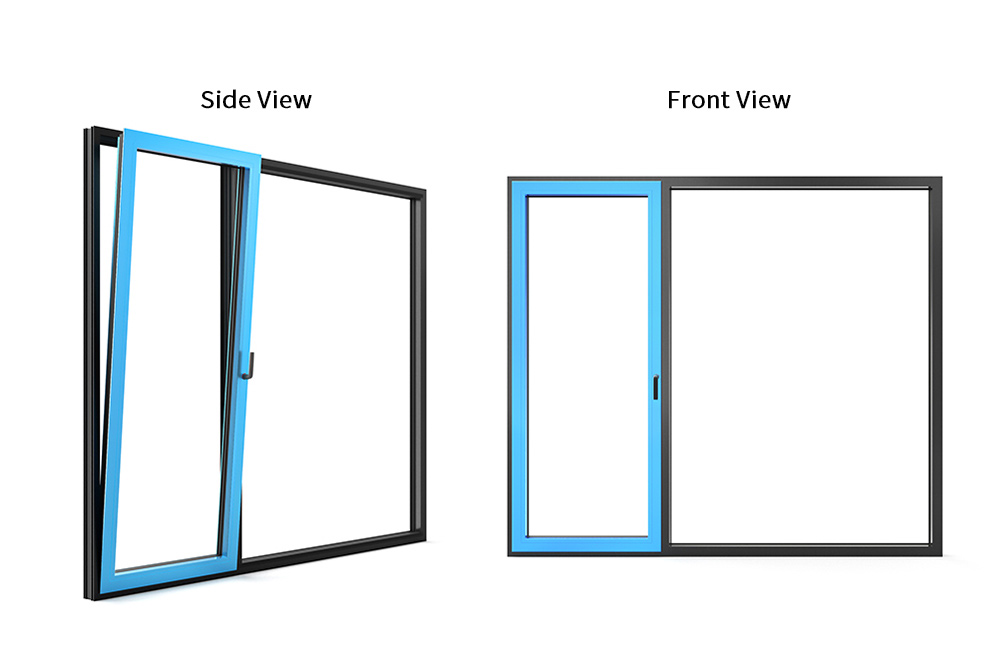

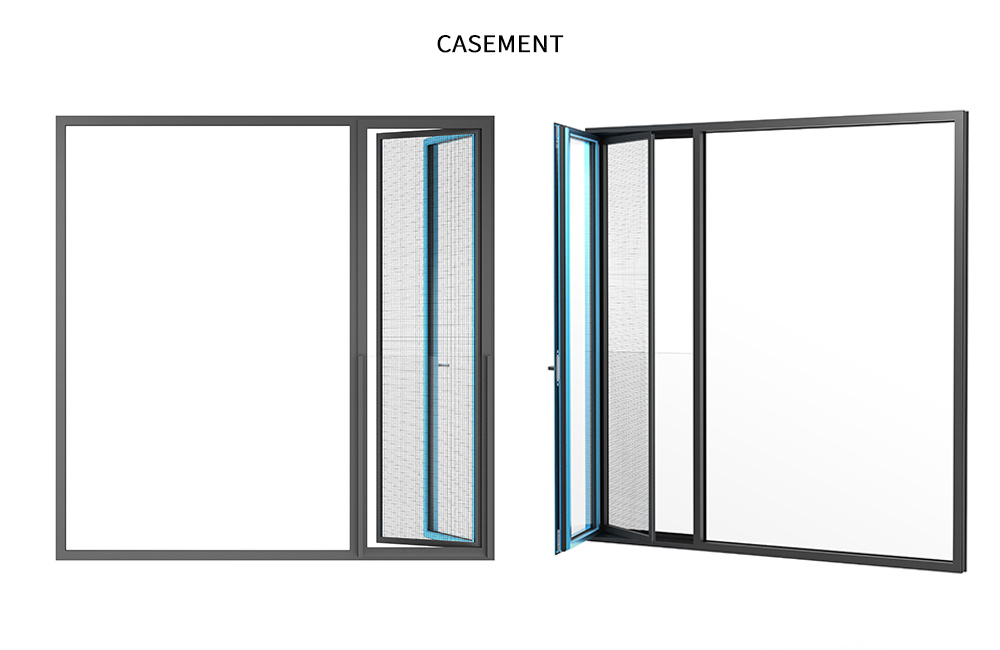

Opening Type：Fix；Inside&outside opening；Tilt&turn；Top-hung

Configuration

Profile Grade：6060-T6

Profile Thickness：1.8mm

Insulation Strip ：PA66GF25 with 39mm width

Glass Specifications：

Standard Configuration ：5G+20A+5G

Optional  Thickness：30mm、40mm、45mm、49mm、55mm

Hardware Brand：Standard configuration：SIEGENIA

Optional Brand：Sobinco

Handle Brand ：

Standard configuration：Lan-system

Optional Brand：HOPPE handle

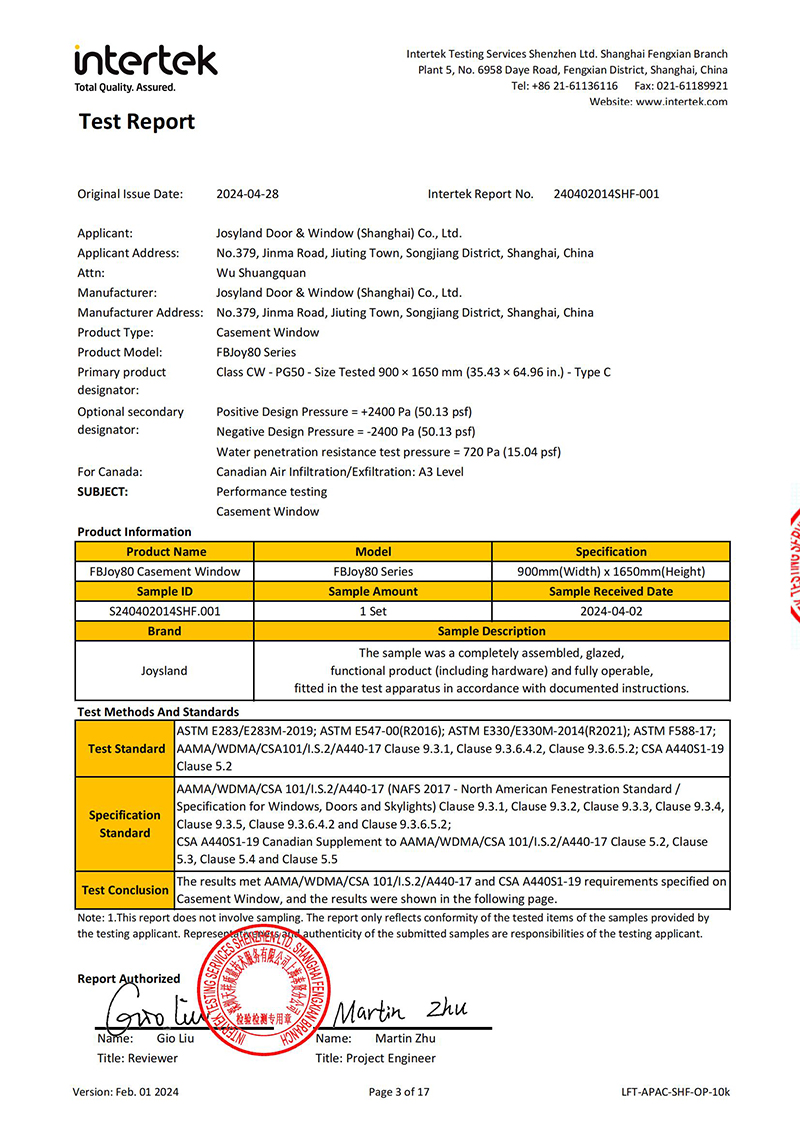

Performance Parameter

Air Tightness[m³/(m²·h)]：level 8

Water Tightness(Pa)：level 6

Wind Load Resistance(Kpa)：level 9

Thermal insulating properties：level 8 （K=1.5W/（㎡·K））

Sound Insulation：level 4 （40dB）

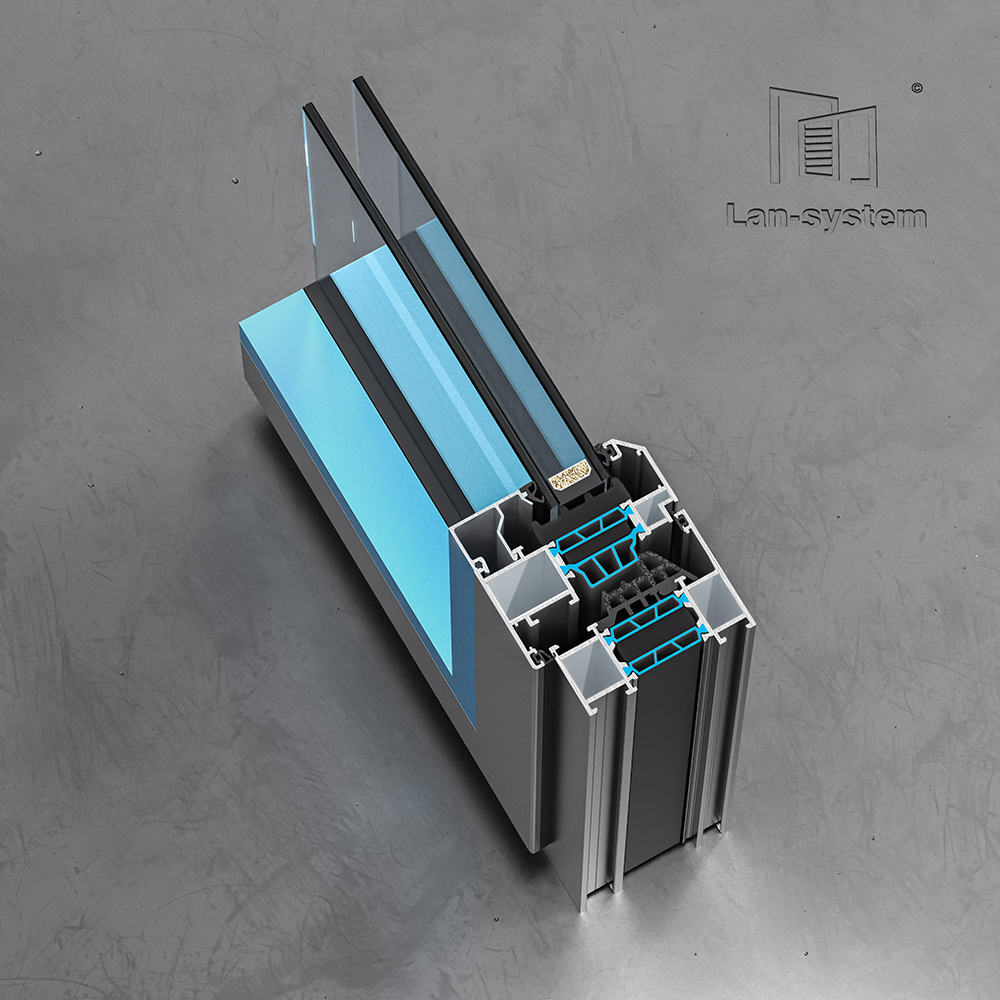

Section Sample

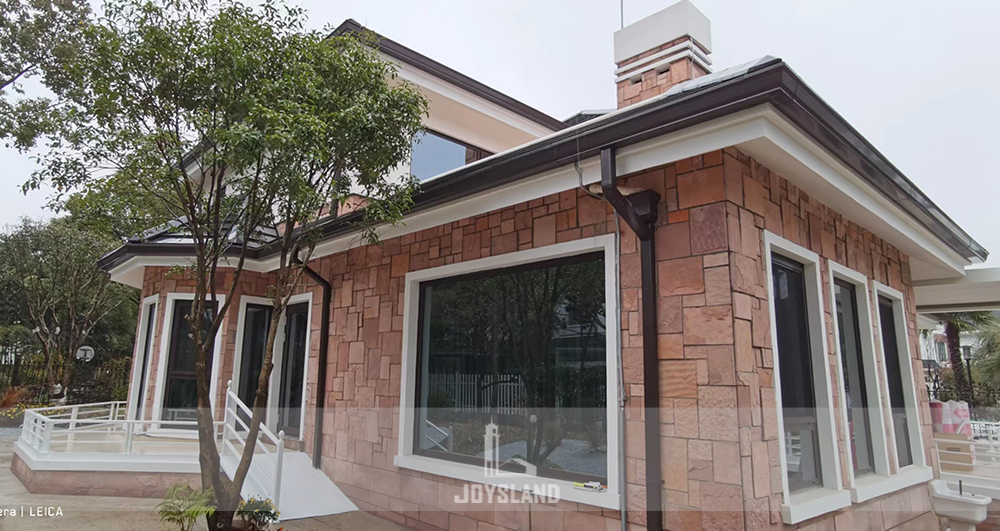

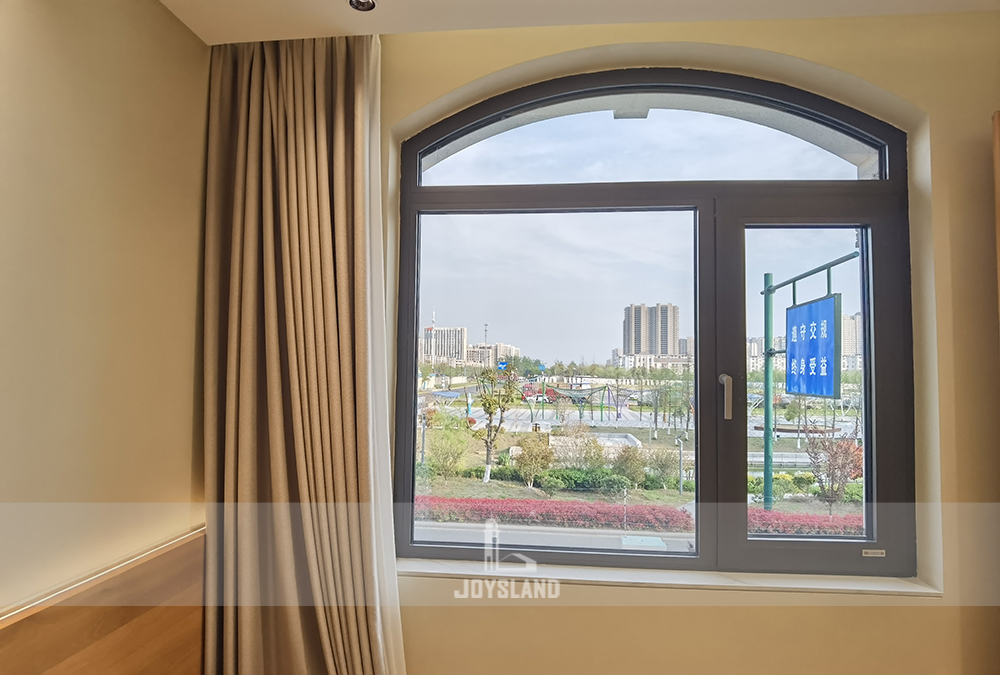

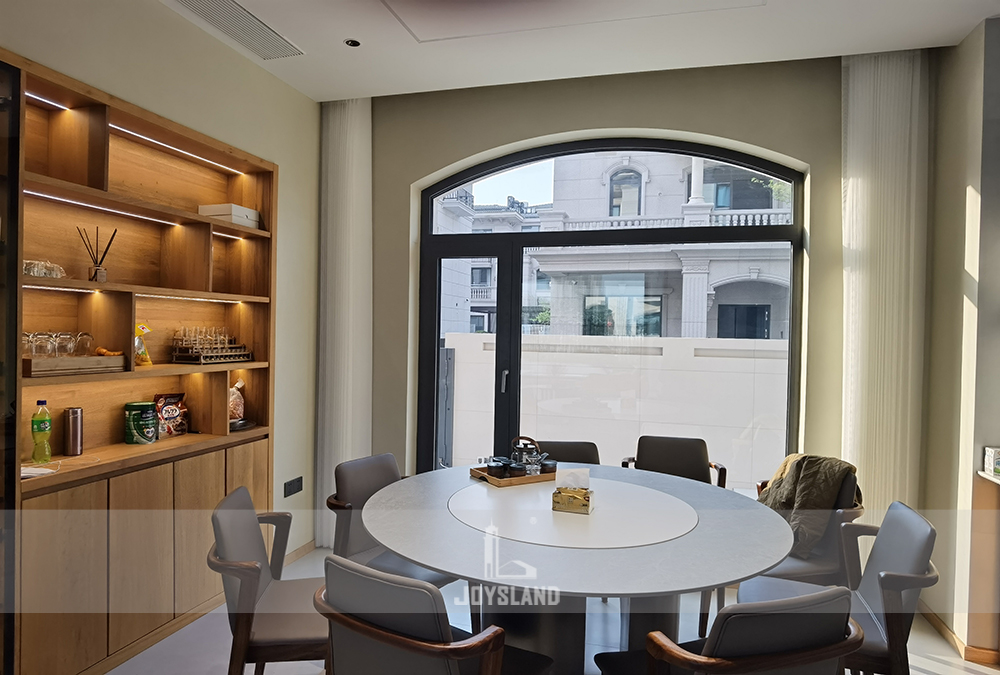

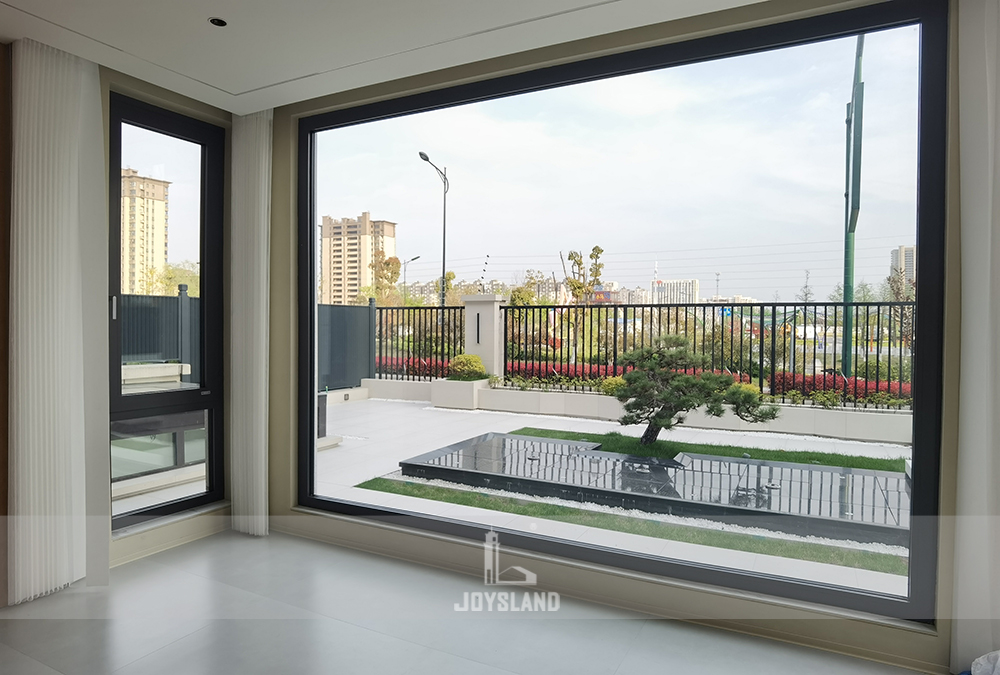

      Real  Case
